Hartford TGV series

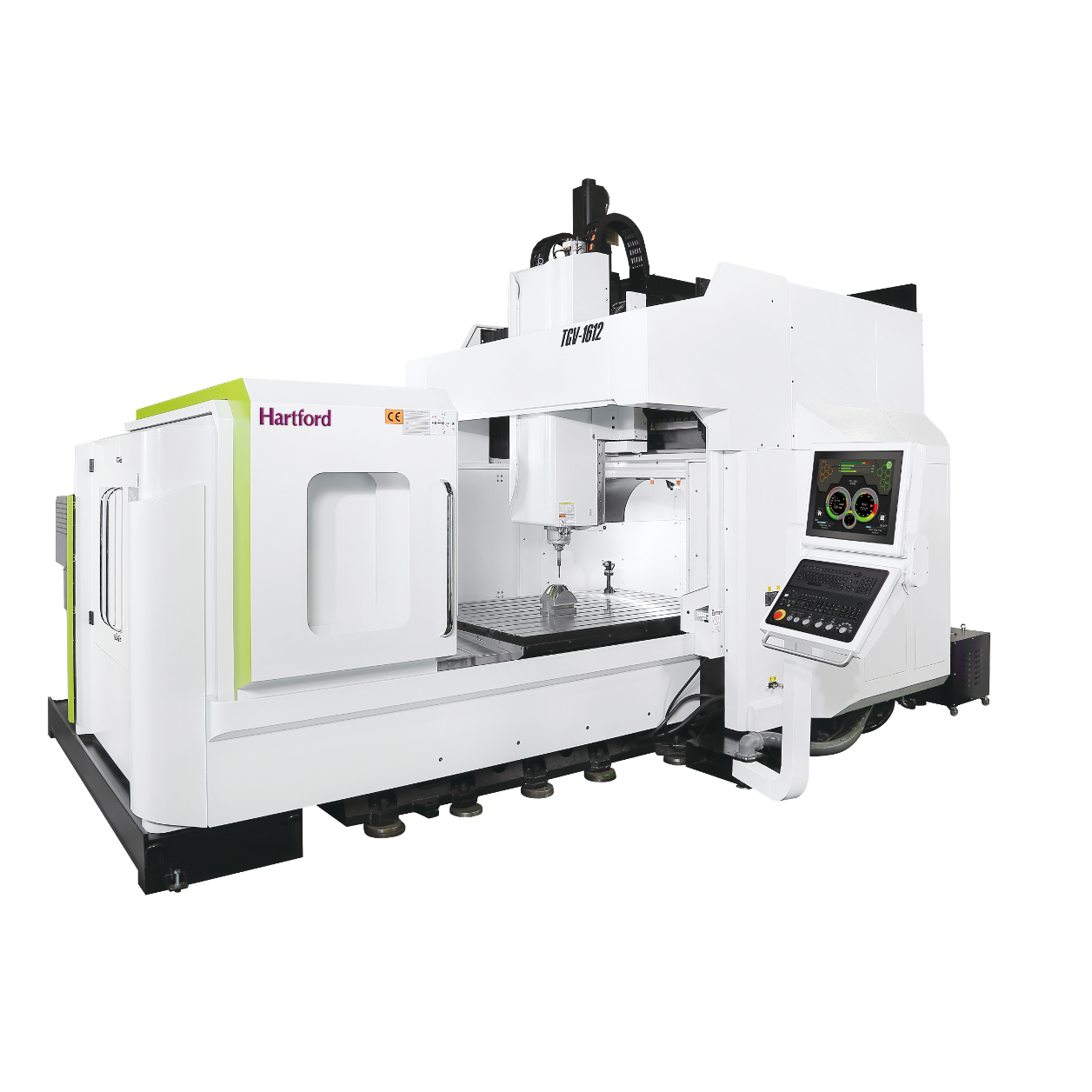

TGV-128/1612 high speed bridge type construction
+The special design of great span between Y-axis linear guideways drastically increases structural rigidity and resist heavy cutting load.
+With the additional pin on the bearing houseing, higher transmission rigidity can be achieved.
+With thermal symmetry and heat isolation design, the heat thermal can be isolated to 97%.
+With the use of toplogy to conduct an optimum structural analysis, a light-weight structure can be achieved.
i-Tech spindle(opt)
+Exclusive smart functions for self-designed and manufactured high speed 24,000rpm spindle is available to integrate various smart functions such as i-Diagnosis, i-Compensation, i-Balance and i-Protections that provide safety protection of spindle, increase the spindle accuracy and reduce down time.
Static rigidity and structure analysis
+Static rigidity and machine structure are analyzed by ANSYS to confirm structure design quality and safety for optimum performance.
Roller type linear guideways on 3 axes
+The linear contact between the rolling body of the roller and the sliding block causes a tiny elastic deformation under a high load condition. This makes high accuracy, heavy load resistance and lifespan possible.
Thermal growth control on 3 axes(opt)
+The parts in 3-axis feed system, such as the motor base, ballscrews, nuts and bearing are completely cooled to remove thermal deformation while ensuring the positioning accuracy of the machine(Features may vary by model).

Description

规格
TGV-65
  TGV-128
TGV-1612
工作台
工作台面积
             750×620 mm 1300×850 mm 1800×1300 mm
工作台最大载重量
                 500 kg 2500 kg 4000 kg
行程
纵向行程(X轴)
                660 mm 1200 mm 1600 mm
横向行程(Y轴)
                550 mm 800 mm 1200 mm
上下行程(Z轴)
                460 mm 700 mm 700 mm
主轴
主轴锥度
ISO40, HSK-A63(20/24K only) ISO40, HSK-A63 ISO40/HSK-A63/ISO50
主轴转速(直结式) 10000 opt.12000/15000/20000 rpm #40:10000 opt.15000/20000 rpm #40: 10000 opt. 15000/20000 rpm
主轴转速(内藏式)
          opt. 24000 rpm #40: opt: 24000 rpm #40: opt.24000#50: opt.12000 rpm
进给
快移速度(X/Y/Z)
          36/36/36 m/min 30/30/30 m/min 30/30/30 m/min
自动换刀系统
刀具数目
     A:24 opt. 30/40/60 pcs 16 opt. 24/32/40 pcs 16 opt. 24/32/40 pcs
