KITAMURA MYTRUNNION-4G/7G

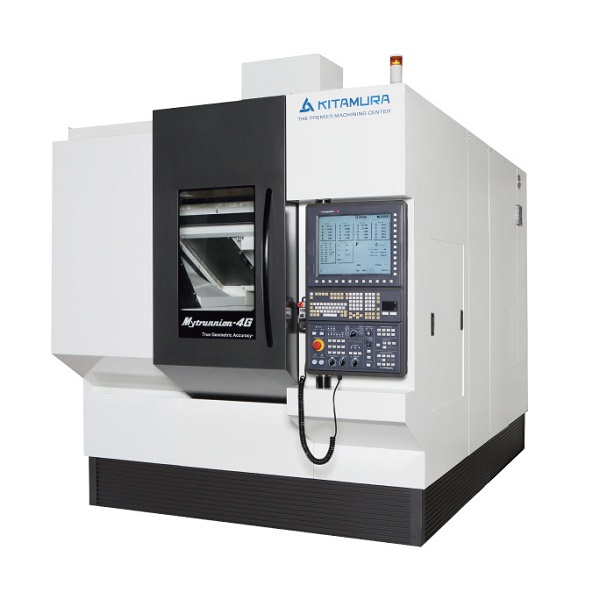

Mytrunnion-4G
• Ideal for ultra-high precision simultaneous 5-axis machining
• Positioning Accuracy: ±0.000079” Full Stroke, Repeatability: ±0.000039”
• Sliding overhead door allows for easy workpiece loading/unloading
• Powerful #40, 15,000rpm, 15HP Direct Drive, Dual Contact Spindle Optional HSK-A63 Spindle Configuration available
• Highly Rigid, Ultra-High Precision Roller Gear Cam Table in the 4th & 5th Axes
• Expansive 21.7″Dia. x 15.7″H (550 x 400mm) work envelope beats the competition
• Highest grade meehanite cast iron construction for superior vibration absorption and improved surface finishes

Mytrunnion-7G

• Vertical 5-Axis machining center, ideal for large capacity, high precision Aerospace applications
• Positioning Accuracy: ±0.000079” Full Stroke, Repeatability: ±0.000039”
• Full 5-axis simultaneous capabilities
• Best performance, high output #50, 12,000rpm, gear driven dual contact spindle
• Linear Scale Feedback on all Axes
• Highest grade meehanite cast iron construction for superior vibration absorption and improved surface finishes
• Zero backlash roller cam style 4th/5th axis rotary table
• High speed rapid feed rates 1,969ipm (X, Y), 1,181 (Z) Super-fast for a machine of this size



Description

MYTRUNNION-4G
Table Size: 15.7” (400mm) round dia.
Travel (X, Y, Z): 24” x 24” x 19.7”
(610 x 610 x 500mm)
Travel (A, C): -120~+30 deg. /0~360 deg.
Spindle Taper: NST No. 40
Spindle Speed: 40~15,000rpm
Tool Storage Capacity: 60 Pcs. (Opt. 100T)
Tool Change Time (T-T/C-C): 2.2 Sec. /5.8 Sec.
Rapid Feed (X, Y, Z): 1969ipm (50m/min) X & Y, 985ipm (25m/min) Z
Rapid Feed (A, C): 18,000 deg. /min (50rpm)
Power Requirement: 45KVA

MYTRUNNION-7G

Table Size: 39.7” (1,000mm) round dia.
Travel (X, Y, Z): 46.9” x 54.3” x 30.1” (1,190 x 1,380 x 765mm)
Travel (A, C): -120~+30 deg. /0~360 deg.
Spindle Taper: NST No. 50
Spindle Speed: 35~12,000rpm (8,000rpm Opt.) – Gear Drive, 4-Step
Tool Storage Capacity: 100 Pcs.
Tool Change Time (T-T/C-C): 3.3 Sec. /9.7 Sec.
Rapid Feed (X, Y, Z): 1,969ipm (50m/min) X/Y x 1,181ipm (30m/min) Z
Power Requirement: 65KVA
