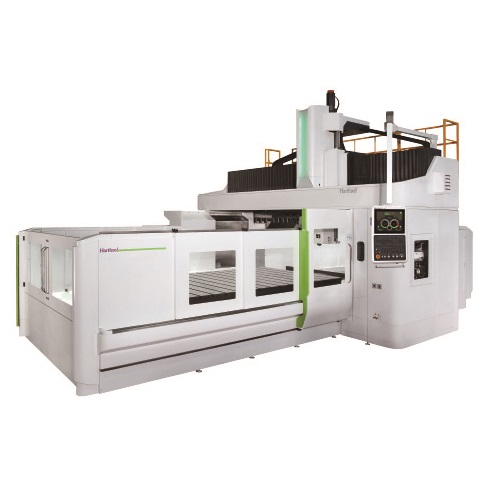

Mirage/ HEP series

 Oil/fluid separation on base
+The completed oil/fluid separation design throughout the machine extends the service life of fluids and save on production costs.
+It meets environmental protection requirements.
+Combined with the patented oil/fluid separation tank to achieve the best oil/fluid separation effect.
Durable, overlapped beam, column and base construction
+Extra high box type beam construction combined with shortened聽column length increase the rigidity of entire structure.
+ Scraping accuracy calibration is easier to control.
Spindle head
+Box type, thermal symmetry spindle head construction.
Hydraulically balanced Z-axis
+Automatic positioning calibration design increase Z-axis feed smoothness and machining accuracy.

Description

规格
HEP-2150

HEP-3150

工作台
工作台面积
2000×1400 mm
3000×1400 mm
工作台最大载重量
8000 kg
10000 kg
行程
纵向行程(X轴)

2250 mm

3250 mm
横向行程(Y轴)
1600 mm
1600 mm
上下行程(Z轴)
780 mm
780 mm
主轴
主轴锥度
ISO50
ISO50
主轴转速(齿轮式)
6000 rpm
1000 opt.12000 rpm
主轴转速(直结式)
opt.10000/12000 rpm
6000 rpm
进给
快移速度(X/Y/Z)
24/24/20 m/min
24/24/20 m/min
自动换刀系统
刀具数目
S:20 opt.A:32/40 pcs
S:20 opt.A:32/40 pcs
