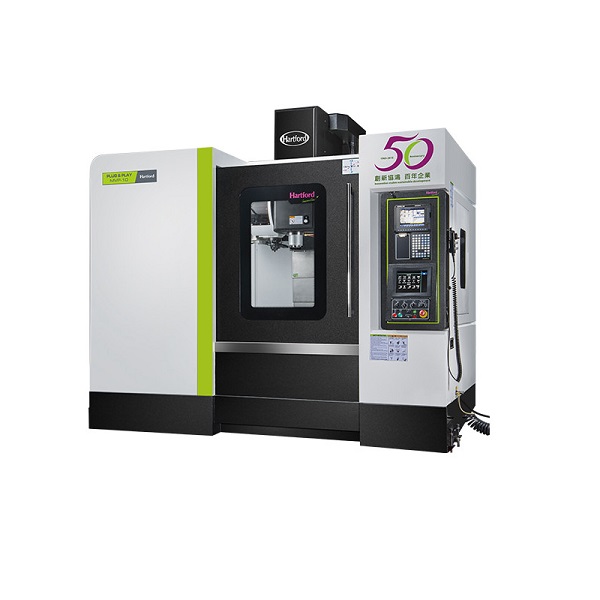

Hartford Plug & Play MVP series

Z-axis servo motor coupled directly to ballscrew
+No more Z-axis timing belt, the servo is connected to the ballscrew. There is no more need to maintain or replace the timing belt.
Z-axis servo motor upgraded and no counter-balance block (opt.)
+Special package to improve the precision of Z-axis movement in high speed machining.
Greater column
+1100mm (MVP8/10) wide column case. The column on the MVP features a heavier structure than competing models to upgraded stability.The column and base are oversized fully ribbed to support heavy loads without table deflection.
+Drain through built-in on working table.
Incorporated oil fluid separation on casting design
+Eco-friendly design. Efficient oil and fluid separation incorporated on casting design prevents cutting fluid deterioration.
1600mm oversized base
+One piece Meehanite casting which is stable, rigid and rugged. To ensure maximum rigidity, the MVP-8 and MVP-10 are built on heavy duty Meehanite casting. Also, all axes are reinforced to provide upper most rigidity and stability.
φ50 ballscrews on 3 axes(MVP-13)
+All ballscrews are center mounted and supported on both ends by high precision angular contact thrust bearing. All servo motors with absolute encoders for increasing efficiency and dependability. (FANUC and Mitsubishi only)

Description

机器规格 单位 MVP-8 MVP-10 MVP-13
工作台 工作台面积 mm 1,000×560 1,150×560 1,400×700
工作台最大载重量 kg 500 700 1,500
行程 纵向行程(X轴) mm 860 1,050 1,300
横向行程(Y轴) mm 530 530 700
上下行程(Z轴) mm 630 630 650
主轴 主轴锥度 #40 #40 #40
主轴转速(皮带式) rpm 8,000

Opt.10,000/12,000

8,000

Opt.10,000/12,000

8,000

Opt.10,000/12,000

主轴转速(直结式) rpm 15,000opt. 10,000/12,000/20,000 15,000opt. 10,000/12,000/20,000 10,000opt. 12,000/15,000/20,000
进给 快移速度(X/Y/Z) m/min 36/36/30

Opt. 48/48/36

36/36/30

Opt. 48/48/36

36/36/30
自动换刀系统 刀具数目 pcs A:24/30/40 S:20opt. A:24/30/40 A:24/30/40

—————————————————————————————————————————————————————————————————

机器规格

单位 MVP-16,#40 MVP-16,#50

MVP-11

工作台 工作台面积 mm 1,750×820 1,750×820 1,270×600
工作台最大载重量 kg 2,000 2,000 1,000
行程 纵向行程(X轴) mm 1,600 1,600 1,100
横向行程(Y轴) mm 820 820 600
上下行程(Z轴) mm 700 700 630
主轴 主轴锥度 #40 #40 #40
主轴转速(皮带式) rpm 8,000 opt.10,000/12,000 10,000 opt.12,000 10,000 opt.12,000/15,000/20,000
主轴转速(直结式) rpm 10,000opt. 15,000 6,000opt. 8,000

(齿轮式)

8,000 opt. 10,000/12,000
进给 快移速度(X/Y/Z) m/min 32/32/24 32/32/24 20/20/20
自动换刀系统 刀具数目 pcs A:24 (30/40,S:16) A:24 (30/40) A:24/30/40
