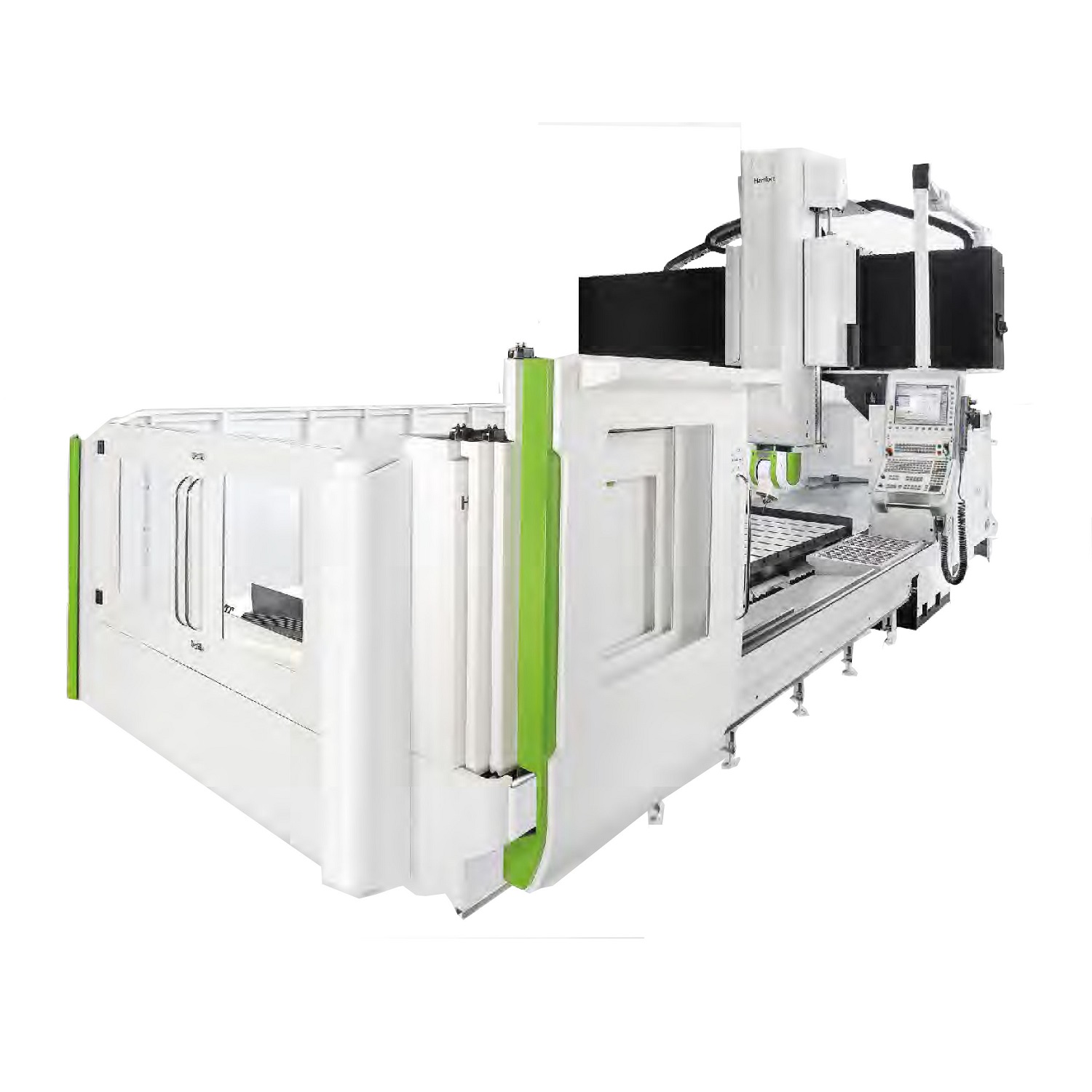

Hartford 5BC series

High efficiency solution for Aerospace components
+The Hartford 5BC 5-axis machining center builds on decades of machining excellence form the Hartford brand tp deliver a next generation solution for customers in the Aerospace components industry.
The ultimate 240° 5-axis head
+Hartford’s in house 240° 5-axis head delivers the versatility and cutting flexibility you need to handle large complex components machining.
Fork structure head
+Hartford’s 5-axis head with fork structure delivers you higher rigidity.
HSK-A63 high precision spindle
+Assemble with self-made high precision built-in spindle. The double contact HSK spindle with 15,000rpm make the spindle high speed , high precision and high rigidity. Furthermore, CTS function can be added and make your machining more productivity.

Description

规格
5BC-329

5BC-429

工作台
工作台面积
3000×1800 mm
4000×1800 mm
工作台最大载重量
10000 kg
12000 kg
行程
纵向行程(X轴)

3000 mm

4000 mm
横向行程(Y轴)
2900 mm
2900 mm
上下行程(Z轴)
1000 opt.1200 mm
1000 opt.1200 mm
主轴
主轴锥度
HSK-63A/HSK-100A
HSK-63A/HSK-100A
主轴转速(内藏式)
HSK-63A:15000HSK-100A: 12000 rpm
HSK-63A: 15000HSK-100A: 12000 rpm
进给
快移速度(X/Y/Z)
20/18/16 m/min
20/18/16 m/min
自动换刀系统
刀具数目
32 opt. 40/60 pcs
32 opt. 40/60 pcs
