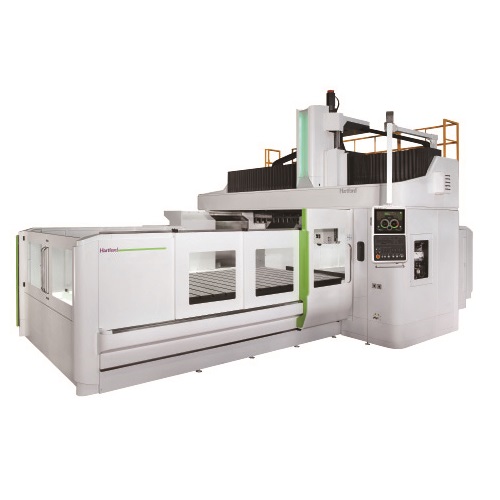

Hartford ALL NEW INFINITY/ HSA series

Four linear guideways on Z-axis
+With the design of four linear guidewasys on Z axis, the machine rigidity is higher and th e cutting performance is much better. (For HSA2212/3212/2215, four linear guideways  is optional, the rest machines is standard.)
Three linear guideways on X axis (HSA-X28/HSA-X36)
+The design of three linear guideways on X axis can resist the rotation torque when cutting, the rigidity can be increased by 50%. Furthermore, the max. load of table can be up to 30,000kg.
 Reduced cutting vibration with new force flow design
+New slant beam design redirects the cutting force flow at 45 ° down into the columns, significantly reducing vibration through efficient force flow transfer.
Maximum transmission power enhanced positional accuracy
+Our patented X and Y axis ballscrew support coupled ensure the transmission power is delivered at min. los whilst also minimising deflection issues to enhance your machining accuracy.
Nitrogen counter balance
+With the design of nitrogen counter force on Z-axis, the noise problem of hydraulic unit can reduce to 72dB, also the temperature of oil tank can reduce to 35℃. Furthermore, Z axis rapid traverse can be upgraded to 16m/min.

Description

规格
HSA-323
HSA-327
  HSA-428
HSA-536
HSA-2215
工作台
工作台面积
3000×2200 mm 3000×2200 mm 4000×2500 mm 5000×3000 mm 2100×1450 mm
工作台最大载重量
10000 kg 10000 kg 18000 kg 21000 kg 8000 kg
行程
纵向行程(X轴)
3000 mm 3000 mm 4000 mm 5000 mm 2200 mm
横向行程(Y轴)
2300 mm 2700 mm 2800 mm 3600 mm 1500 mm
上下行程(Z轴)
780 opt.1000/1200 mm 780 opt.1000/1200 mm 780 opt.1000/1200 mm 780 opt.1000/1200 mm 780 opt.1070 mm
主轴
主轴锥度
ISO50 ISO50 ISO50 ISO50 ISO50/ISO40
主轴转速(直结式)
opt. 10000/12000 rpm 10000 opt. 12000 rpm 10000 opt. 12000 rpm opt. 10000/12000 rpm 10000 opt.15000 only on #40 opt.12000 only on #50 rpm
主轴转速(齿轮式)
6000 opt. 8000 rpm 6000 opt. 8000 rpm 6000 opt. 8000 rpm 6000 opt. 8000 rpm 6000 rpm
进给
快移速度(X/Y/Z)
20/18/16 m/min 20/18/16 m/min S:20 A:32 pcs 12/16/16 m/min 24/24/20(Z780) 15(Z1070) m/min
自动换刀系统
刀具数目
S:20 A:32 pcs S:20 A:32 pcs 24 opt. 32/40 pcs S:20 A:32 pcs S:20 A:32/40 pcs
