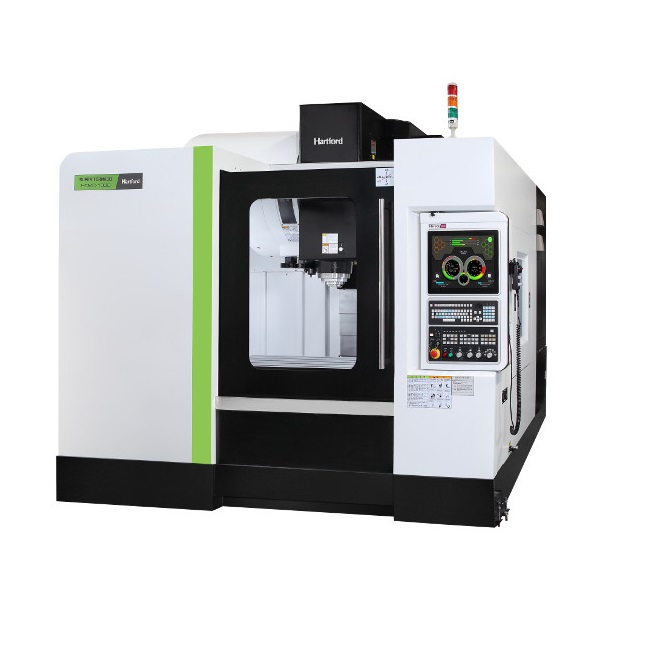

Hartford Super Tornado-HCMC series

Maximum support
+Zero overhang design for optimum stability.
Axis overhang
+The base has been redesigned to widen the support points on the base and guarantee full support throughout the X axis traverses.
Column extension delivers higher stability
+The base of the machine has also been redesigned to deliver exceptional stability under heavier cutting loads.
3-axis with temperature controlled structure(HCMC-1100 opt.)
+We have added recirculating cooling channels at each of these heat points to ensure that the thermal deformation is not an issue and positional accuracy is always maintained.
A+ structure for HCMC-1100
+Wider column base interface to enhance stability and efficient force dissipation.

Description

机器规格 单位 HCMC-1100 HCMC-1270 #40 HCMC-1270 #50
工作台 工作台面积 mm 1,270×600 1,370×650 1,370×650
工作台最大载重量 kg 1,200 1,200 1,200
行程 纵向行程(X轴) mm 1,100 1,270 1,270
横向行程(Y轴) mm 600 650 650
上下行程(Z轴) mm 630 630 630
主轴 主轴锥度 #40,#50 #40 #40
主轴转速(齿轮式) rpm #40,#50: 6,000 opt.8,000 6,000 opt. 8,000 6,000 opt. 8,000
主轴转速(皮带式) rpm #40:8,000 opt.10,000/12,000 8,000opt. 10,000/12,000 8,000opt. 10,000/12,000
主轴转速(皮带式) #50:opt. 10000 10,000 opt. 15,000 10,000 opt. 12,000
进给 快移速度(X/Y/Z) m/min 24/24/20 24/24/20 24/24/18
自动换刀系统 刀具数目 pcs S:16  A:24 A:24/30/40 A:24/32

————————————————————————————————————————————————————————————————————————-

机器规格

单位 HCMC-1370 HCMC-1682 HCMC-2082 HCMC-2110
工作台 工作台面积 mm 1,450×700 1,750×820 2,150×820 2,250×1,020
工作台最大载重量 kg 1,500 2,200 2,600 3,000
行程 纵向行程(X轴) mm 1,300 1,600 2,060 2,100
横向行程(Y轴) mm 700 820 820 1,020
上下行程(Z轴) mm 660 660 opt. 820 660 opt. 820 820
主轴 主轴锥度 #50 #50 #50 #50
主轴转速(齿轮式) rpm 4,000 opt.6,000/8,000 6,000 4,000opt. 6,000/8,000 4,000opt. 6,000/8,000
主轴转速(直结式) 10,000opt. 12,000 10,000 opt. 12,000 10,000 opt. 12,000
进给 快移速度(X/Y/Z) m/min 24/24/20 20/20/18 18/18/18 15/15/15
自动换刀系统 刀具数目 pcs A:24/32/40 A:24/32/40 A:24/32/40 A:24/32/40
