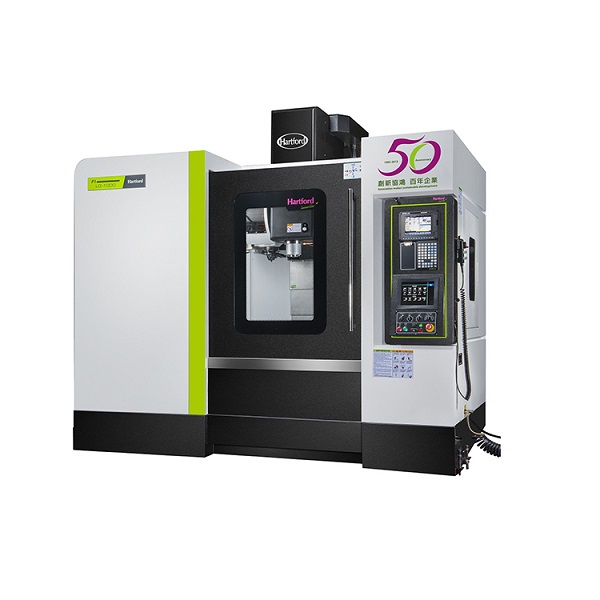

Hartford F1/ LG series

High efficiency
+The rapid feed rate is 40/40/32 m/min for X,Y,Z axes (opt.).
+Such high speeds reduce non-cutting time and directly increase productivity.
Better stability, high accuracy
+The rigid one-piece bed and wide column base are heavily ribbed to prevent twisting and distortion under even the most severe cutting forces.
+The find great Meehanite cast iron contributes to unparalleled damping characteristics.
Incorporated oil fluid separation on casting design
+Eco-friendly design
+Efficient oil and fluid separation incorporated on casting design prevents cutting fluid deterioration.
+Once-piece casting design integrates chassis and chip disposal opening with base.
+No abutment on chassis.
+Leaking-free design.
Heavy duty & precise linear guideways
+The linear guide on three axes are high grade, providing stability for heavy cutting
+High efficiency machining center

Categories: , , Tag:

Description



机器规格 单位 LG-500 LG-800 LG-1000 LG-1370 LG-1570
工作台 工作台面积 mm 620×420 950×510 1,150×510 1,400×650 1,600×650
工作台最大载重量 kg 300 500 700 1,000 1,000
行程 纵向行程(X轴) mm 520 800 1,000 1.300 1,500
横向行程(Y轴) mm 420 510 510 700 700
上下行程(Z轴) mm 450 630 630 650 650
主轴 主轴锥度 #40 #40 #40 ISO40 ISO40
主轴转速(皮带式) rpm 8,000 opt.10,000/12,000 8,000 opt.10,000/12,000 8,000 opt.10,000/12,000 8,000 opt.10,000/12,000 8,000 opt.10,000/12,000
主轴转速(直结式) rpm 10,000 opt. 12,000 12,000 opt. 15,000 — 10,000 opt. 15,000 10,000 opt. 12,000/15,000
进给 快移速度(X/Y/Z) m/min 32/32/32opt. 40/40/32 30/30/24 opt. 40/40/30 30/30/24 opt. 40/40/30 30/30/24 opt. 40/40/30 30/30/24 opt. 40/40/30
自动换刀系统 刀具数目 pcs A:24 A:24 A:24 A:24/30/40 A:24/30/40
