NAKAMURA-TOME Super NTJ

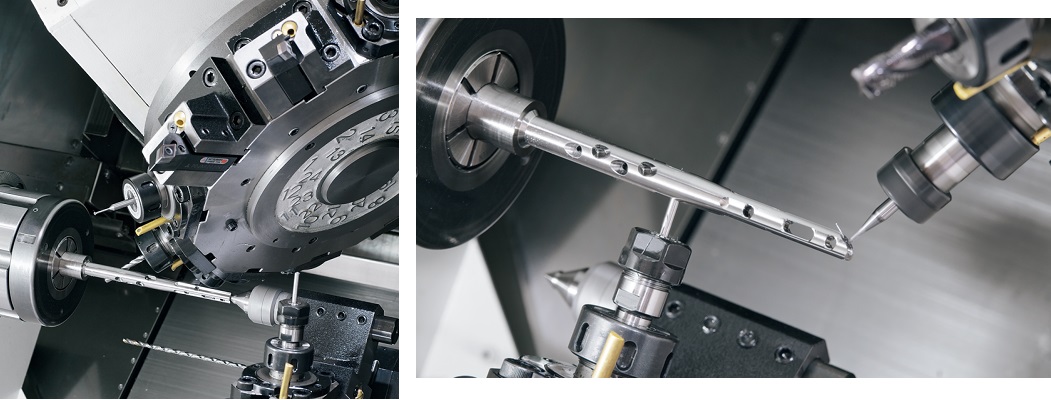

刀塔可旋轉182° 利用標準刀具即可進行斜面孔，斜面，任意面的加工 • 上刀塔配備B軸！回轉範圍182° • 最多配備刀具數48把！ • 對向雙主軸，左右同時加工，縮短時間 上刀塔標準配備銑削，Y軸 • Y軸行程90mm(Upper) • 銑削馬達功率5.5/3.7kW, 轉數6,000min-1刀塔可旋轉182° 利用標準刀具即可進行斜面孔，斜面，任意面的加工 • 上刀塔配備B軸！回轉範圍182° • 最多配備刀具數48把！ • 對向雙主軸，左右同時加工，縮短時間 上刀塔標準配備銑削，Y軸 • Y軸行程90mm(Upper) • 銑削馬達功率5.5/3.7kW, 轉數6,000min-1B-axis Turret swiveling range is 182° In addition to angular drilling and end milling, arbitrary contour-milling can be performed with standard driven-tool holders • Upper turret with a B-axis, having a swiveling range of 182° • Up to 48 tools. • Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times Upper turret has milling and Y-axes. • Upper Y-axis travel is 90 mm. • Milling motors have 5.5/3.7kW power and 6,000min-1 max. speed.
