NAKAMURA-TOME NTY3-100

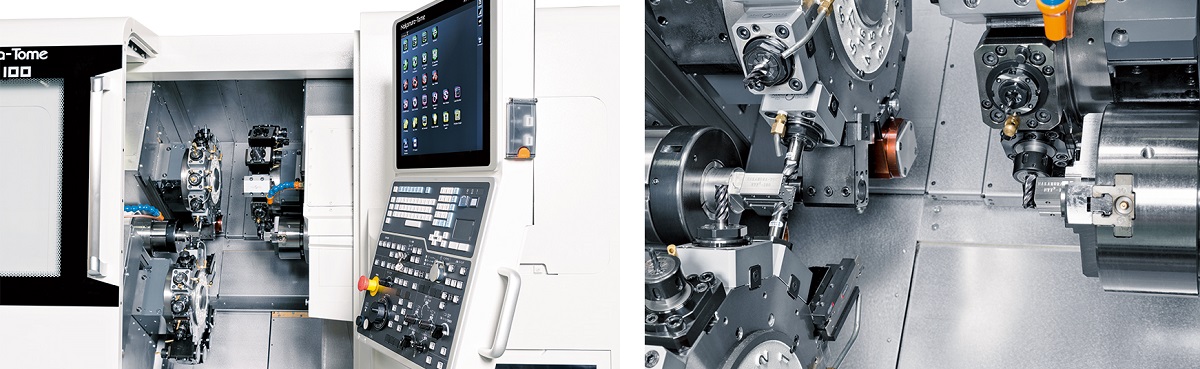

3刀塔2主軸(NTY3) NTY3-100V 比最快，還要快。 3刀塔標準配備Y軸，對向2主軸的複合加工機 • 3刀塔標準配備Y軸！可以選擇12角24st / 15角15st規格 • 最多配備刀具數72把！ • 對向雙主軸，左右同時加工，縮短時間 提高了銑削能力 • 銑削馬達功率7.1/2.2kW, 轉數6,000min-1(op. 12st:8,000min-1)Three-Turret, Three-Y-Axis, Opposed-Spindle CNC Multitasking Machine. • All three Y-axes are standard. / 24st (Half Index) , 15-station turret / 15st are optionally available. • Up to 72 tools. • Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times. High-Performance Milling Capabilities • Milling motor power is 7.1/2.2kW (Op. 5.5/2.2kW only for 12-st turret). • Max. speed 6,000 min-1 (Op. 8,000min-1).
