NAKAMURA-TOME NTY3-150

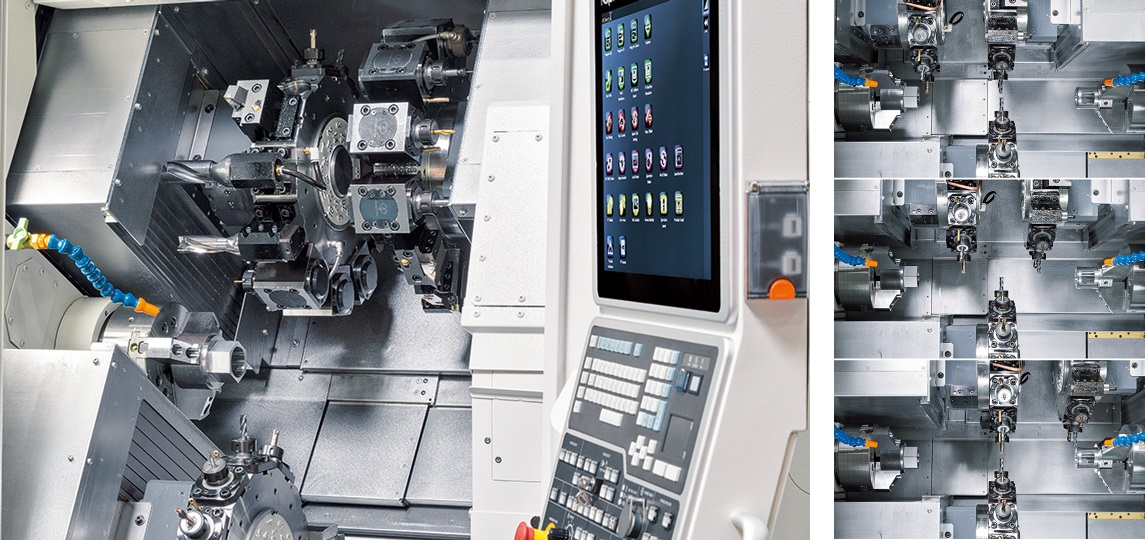

3刀塔2主軸（NTY³） NTY³-150V 比最快，還要快。 3刀塔標準配備Y軸，對向雙主軸的複合加工機 • 3刀塔標準配備Y軸！ • 最多配備刀具數72把！ • 對向2主軸，L/R同時加工，縮短時間 交叉行程可以對應各種各樣的加工 • 交叉行程※(左右：115mm) ※一側的刀塔後退時，另一側的刀塔可以超越原點前進 銑削馬達功率5.5/3.7kW, 轉數6,000min-1Three-Turret, Three-Y-Axis, Opposed-Spindle CNC Multitasking Machine. • All three Y-axes are standard. • Up to 72 tools. • Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times. Wider Working Range with Upper L/R Z-Axis Cross-Over Travel • Cross-over travel ※(L/R 115mm). • When one turret is retracted in the Z-axis direction, the other turret can advance beyond its Z-Axis reference point. • Milling motors have 5.5/3.7kW power and 6,000min-1 max. speed.
