NAKAMURA-TOME NTJ-100

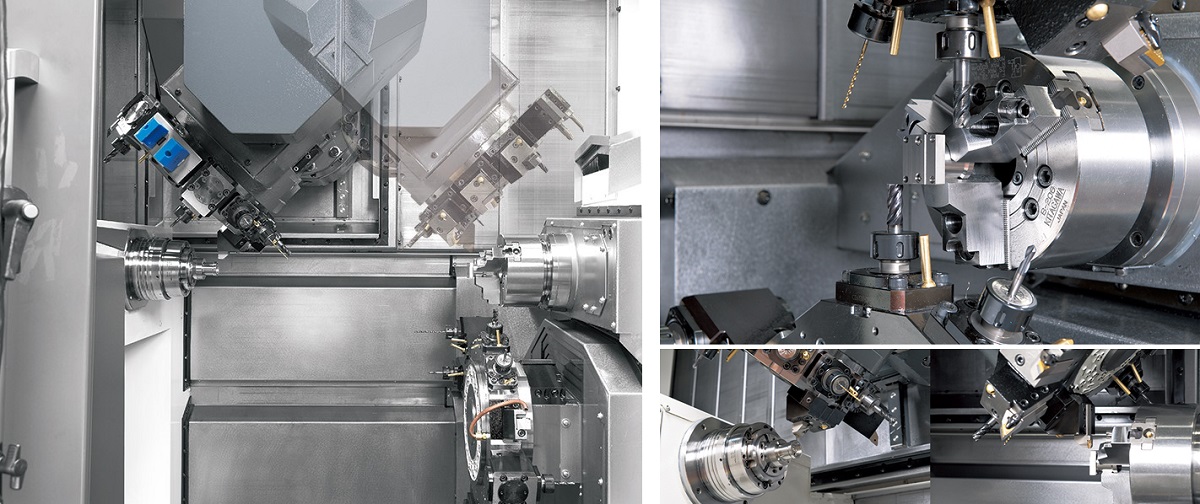

刀塔可旋轉182° 利用標準刀具即可進行斜孔，斜面，任意面的加工 • 上刀塔配備B軸！回轉範圍182° • 最多配備刀具數48把！固定的刀具縮短加工時間 • 對向2主軸，L/R同時加工，縮短時間 上下刀塔標準配備銑削，Y軸 • Y軸行程80mm(Upper),65mm(Lower) • 銑削馬達輸出7.1/2.2kW, 轉數6,000min-1刀塔可旋轉182° 利用標準刀具即可進行斜孔，斜面，任意面的加工 • 上刀塔配備B軸！回轉範圍182° • 最多配備刀具數48把！固定的刀具縮短加工時間 • 對向2主軸，L/R同時加工，縮短時間 上下刀塔標準配備銑削，Y軸 • Y軸行程80mm(Upper),65mm(Lower) • 銑削馬達輸出7.1/2.2kW, 轉數6,000min-1Turret B-axis Swiveling Range 182° In Addition to Angular Drilling and End Milling, Arbitrary Contour-Milling Can Be Performed with Standard Driven-Tool Holders • Upper turret with a B-axis, having a swiveling range of 182°. • Up to 48 tool stations! Reduce setup time with permanent tooling. • Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times. Both upper and lower turrets have milling and Y-axes. • Upper Y-axis travel is 80 mm. Lower Y-axis travel is 65 mm. • Milling motors have 7.1/2.2kW power and 6,000min-1 max. speed.
