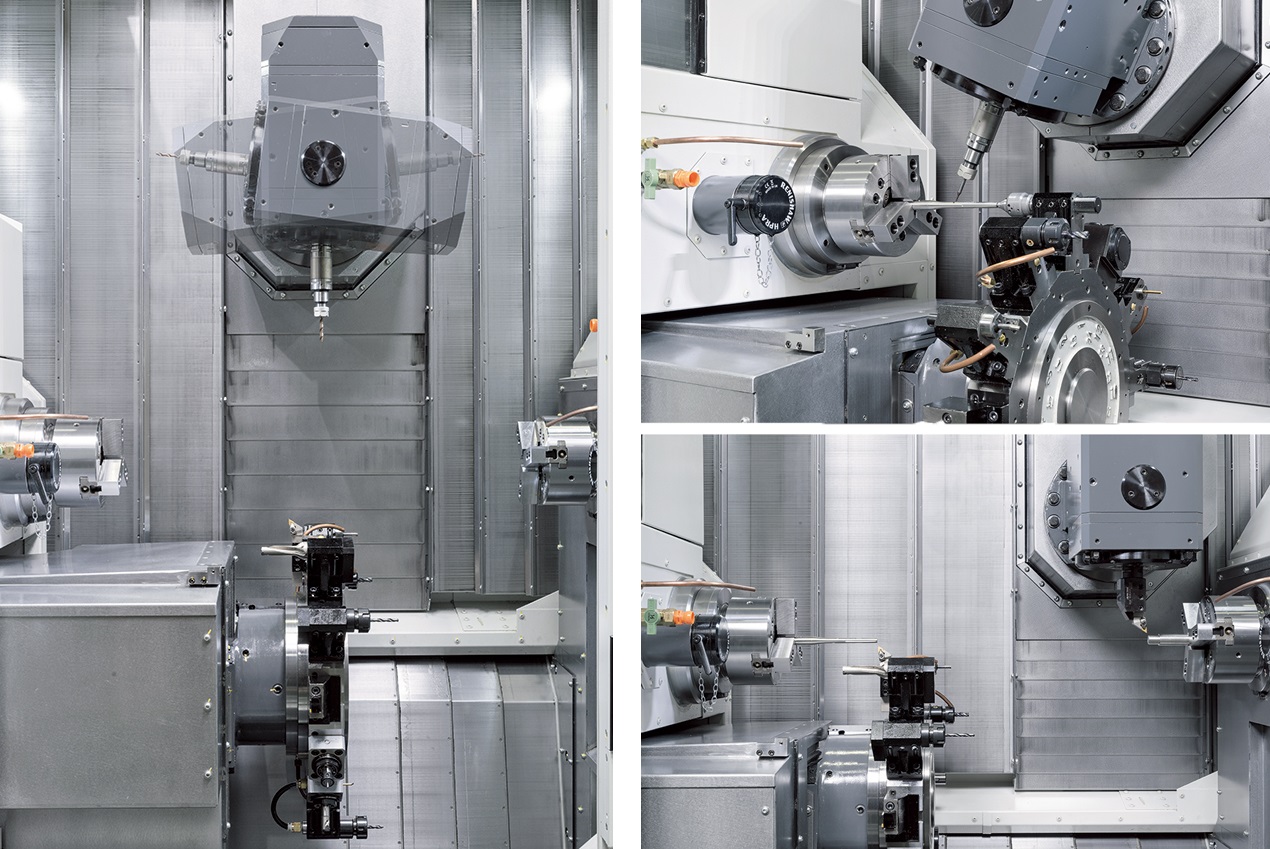

NAKAMURA-TOME MX-100

配備ATC工具主軸＋下刀塔，對向雙主軸 • 工具主軸轉數12,000min-1 (op.20,000min-1) • 主軸端距1,000mm • Y軸行程210mm(±105mm) • 工具軸回轉角度190° (±95°) • ATC工具配備36把刀具 (op. 48,72) • 對向雙主軸，左右同時加工，縮短加工時間 • 寬大,低重心設計的高剛性水平牀身，採用垂直動柱構造 緊湊型6英寸ATC型復合加工機 • 佔地面積4,350mm×2,795mm • 配備電主軸 • 可配置6"～8"卡盤配備ATC工具主軸＋下刀塔，對向雙主軸 • 工具主軸轉數12,000min-1 (op.20,000min-1) • 主軸端距1,000mm • Y軸行程210mm(±105mm) • 工具軸回轉角度190° (±95°) • ATC工具配備36把刀具 (op. 48,72) • 對向雙主軸，左右同時加工，縮短加工時間 • 寬大,低重心設計的高剛性水準牀身，採用垂直動柱構造 緊湊型6英寸ATC型複合加工機 • 佔地面積4,350mm×2,795mm • 配備電主軸 • 可配置6"～8"卡盤Tool Spindle, ATC and Lower-turret, CNC Multitasking Machine with Opposed Twin-spindles. • Maximum Tool spindle speed 12,000min-1 (op. 20,000min-1). • Distance between spindles 1,000mm. • Y-axis stroke 210mm (±105mm). • B-axis swiveling range 190° (±95°). • Number of tools for ATC magazine 36 pcs. (op. 48 ,72). • twin spindle , Save the cycle time by Simultaneous operation with Upper and Lower tools. • Faster cycle times thanks to simultaneous machining with upper and lower tools on L/R opposed twin-spindles. • The slides, having a vertical column structure, are mounted on a high rigidity horizontal machine bed with low gravity design. Compact Multitasking Machine with ATC • Floor space 4,350mm×2,795mm. • Equipped with Built-in Spindles. • Can be equipped with 6 ~ 8-inch chucks.
