NAKAMURA-TOME JX-250

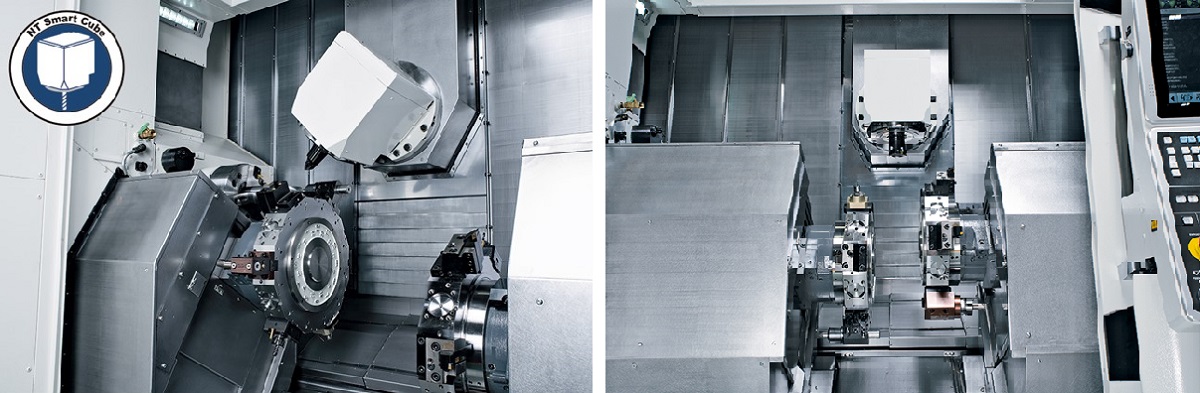

世界最小工具主軸「NT Smart Cube」 高剛性ATC型符合加工機 • 配備世界最小ATC工具主軸「NT Smart Cube」 • 主軸端距1,850mm！ • 緊湊的工具主軸，既能減少軸向幹涉,也能獲得更廣的加工空間. • 主軸中心為中心X-Y平面有效行程□250mm • 工具軸旋回角度240° (±120°) • ATC刀庫可配備40把刀具(op. 80,120) • 對向雙主軸，左右同時加工，縮短加工時間 • 寬大,低重心設計的高剛性水平牀身，採用垂直動柱構造 雙刀塔標配Y軸 交叉行程可以應對各種各樣的加工 • 交叉行程※(R:490mm, L:140mm) ※一個方向的刀塔後退時、另一方的刀塔可以超越原點前進銑削馬達功率5.5/3.7kW, 轉數6,000min-1世界最小工具主軸「NT Smart Cube」 高剛性ATC型符合加工機 • 配備世界最小ATC工具主軸「NT Smart Cube」 • 主軸端距1,850mm！ • 緊湊的工具主軸，既能減少軸向幹涉,也能獲得更廣的加工空間. • 主軸中心為中心X-Y平面有效行程□250mm • 工具軸旋回角度240° (±120°) • ATC刀庫可配備40把刀具(op. 80,120) • 對向雙主軸，左右同時加工，縮短加工時間 • 寬大,低重心設計的高剛性水準牀身，採用垂直動柱構造 雙刀塔標配Y軸 交叉行程可以應對各種各樣的加工 • 交叉行程※(R:490mm, L:140mm) ※一個方向的刀塔後退時、另一方的刀塔可以超越原點前進銑削馬達功率5.5/3.7kW, 轉數6,000min-1The World's Shortest Tool-Spindle "NT Smart Cube" High Rigidity Multitasking Machine with ATC • Equipped The World's Shortest Tool-Spindle "NT Smart Cube" • Distance between spindles 1,850mm. • Thanks to the ultra-compact size of the Tool Spindle, interference is reduced, and a wider machining area is ensured. • 250 mm square stroke in the X-Y plane. • B-axis swiveling range 240° (±120°). • Number of tools for ATC magazine 40pcs (op,80 ,120). • Faster cycle times thanks to simultaneous machining with upper and lower tools on L/R opposed twin-spindles. • The slides, having a vertical column structure, are mounted on a high rigidity horizontal machine bed with low gravity design. Y-Axis is Standard for Both Turrets. (Second Turret is Op.) L/R Z-Axis Cross-over Travel for Wider Working Range • Cross-over travel ※(R:490mm, L:140mm). • When one turret is retracted in the Z-axis direction, the other turret can advance beyond its Z-Axis reference point. • Milling motors have 5.5/3.7kW power and 6,000 min-1 max. speed.
